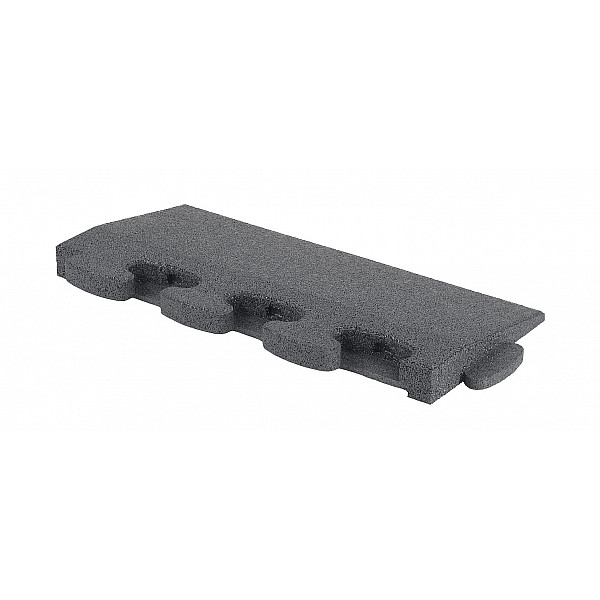

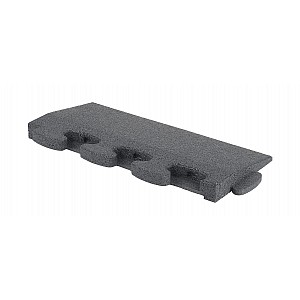

The Puzzle Mat 3D fall protection panels with predefined joint spacing and drainage do not require any plug-in connections. A plane and homogeneous floor surface is created with matching edges and corner tiles.
Details:
Bevelled edge plate
Dimensions: 55 x 25 cm
Material: rubber
Puzzle shaped edges
Available in grey, green, red and black
3 thicknesses for different drop heights
Delivery is carriage forward ex manufacturer's works!
Description
The Puzzle Mat 3D offers a new approach to the installation of fall protection slabs. The bevelled corner panel of the Puzzle Mat 3D fall protection panel system, in conjunction with the matching edge panels, serve as a finishing strip for the application surface. Due to the puzzle elements, the slabs can be easily plugged together and have a predefined joint spacing. Thanks to the integrated serration on the connecting elements, the panels can be joined together both horizontally and vertically. This prevents the mats from slipping afterwards. Additional plug-in connections are no longer required with the Puzzle Mat 3D fall protection panels. In case of depressions and unevenness of the application surface, the panels adapt to the subsoil and do not warp. The Puzzle Mat 3D has integrated water drainage and is therefore permeable to water. The rubber material used makes the tiles extremely durable and robust.
The bevelled corner and edge tiles are particularly suitable, for example, for barrier-free and wheelchair-accessible playgrounds and play areas.
Which panel thickness do I need for which drop height?
4.5 cm thickness for a drop height of up to 160 cm
6 cm thickness for a drop height of up to 210 cm
8 cm thickness for a drop height of up to 280 cm
You can find more details on how to install Puzzle Mat 3D in our instructions.
The floor plates are used to easily secure handball goals (indoor) and indoor sports equipment. For installation or retrofitting of the plates, the type of floor and the floor structure must be specified when ordering.
Details:
Available in two sizes
4 pieces are required for a standard handball goal (BENZ Blackline 6 pieces)
Chrome-plated surface
Screws must be adapted to the subfloor by the customer
Safety screws are not included in the scope of delivery
When ordering, please specify the type and structure of the floor.
100 x 100 x 1.4 cm, hardness of 60-65 ° Shore. Resistive coating with patented Interlocking system 4 integrated with edge and corner pieces (2 cm wide). The point-elastic gentle on the joints Center Line floor remains dimensionally stable even under high stress and is ideal for aerobics area. PVC-free, antibacterial and noise reducing.
The Puzzle Mat 3D fall protection panels with predefined joint spacing and drainage do not require any plug-in connections. A plane and homogeneous floor surface is created with matching edges and corner tiles.
Details:
Dimensions: 55 x 55 cm
Number of tiles per square metre 3-4 mats
Material: rubber
Puzzle shaped edges
Available in grey, green, red and black
3 thicknesses for different drop heights
Delivery is carriage forward ex manufacturer's works!
