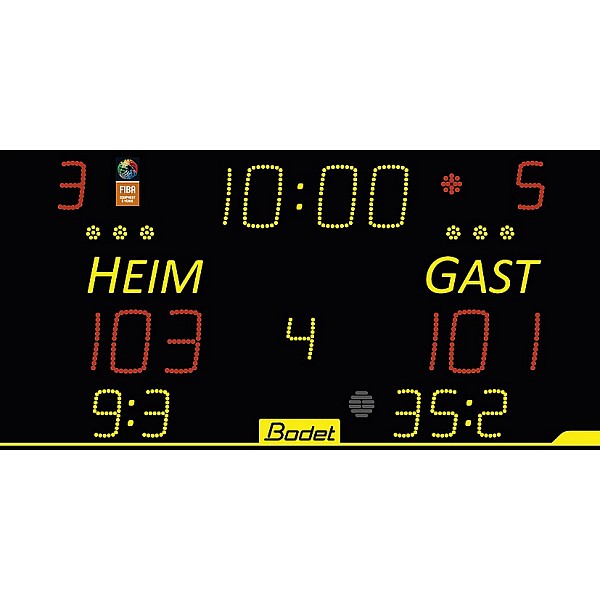

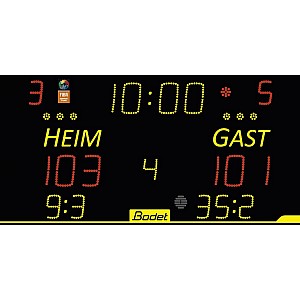

Bezel 8T120, Bodet, incl. Scorepad control panel

Display panel 8015 ALPHA, Bodet, incl. Scorepad control panel, with power supply and an emergency battery, running time control panel without power supply 15 min., Black body, (B x H x D) 120 x 70 x 6.55 cm, 25 kg of yellow and red LED numeric display, of 13 digits, character height 10 and 15 cm, displaying the team name, the display m playing time or time, display the scores and error team, display of time-outs, visibility 60, radio-controlled. Unfree from Herstellerwerk.Bauseitige power: electric supply, electrical connection and operation switches Scorepad long battery 4h operational time, included free of charge.

For 14 different sports (eg basketball, volleyball, handball). 5 different languages. Character height 9 cm, 35 m Visibility, dimensions (W x H x D): 733 x 368 x 115 mm. Weight 6 kg.

For mobile use as a desktop unit or as a stand optional display to the chassis. With integrated control panel for nine preprogrammed sports, badminton, basketball, boxing, handball, judo, karate, wrestling, table tennis and volleyball.

For optimum positioning of the display panel 50. MSA black painted steel, 4 wheels, lockable. Dimensions: 555 x 1100 x 610 mm (H x W x T). Height with mounted display MSA 50: 1250 mm. Frame without bezel!

For convenient operation of the most important functions such as Score, start and stop. Range about 15 m.

Display board BTX6025 MS for outdoor use, Bodet, including Scorepad control panel, powder-coated aluminum housing with impact-resistant protective glass made of polycarbonate, (W x H x D) 206 x 100.6 x 8.45 cm, 30 kg, red LED digits, digit height 20 and 25 cm, display of score, playing time, time, team error, playing period, 3 time-outs per team as well as stopwatch display of playing time, brightness setting from the main control panel with possible authorization longer than a game, radio-controlled, including horn 100 dB at 1 m distance, Visibility 120 m, reading angle 160 °, waterproof protection class IP54 IK07, operating temperature -20 ° to 50 °C, On-site performance: electrical connection and operation switches, Unfree from manufacturer plant, for the various outdoor areas and environments with aggressive conditions such as swimming pools and ice rinks.
